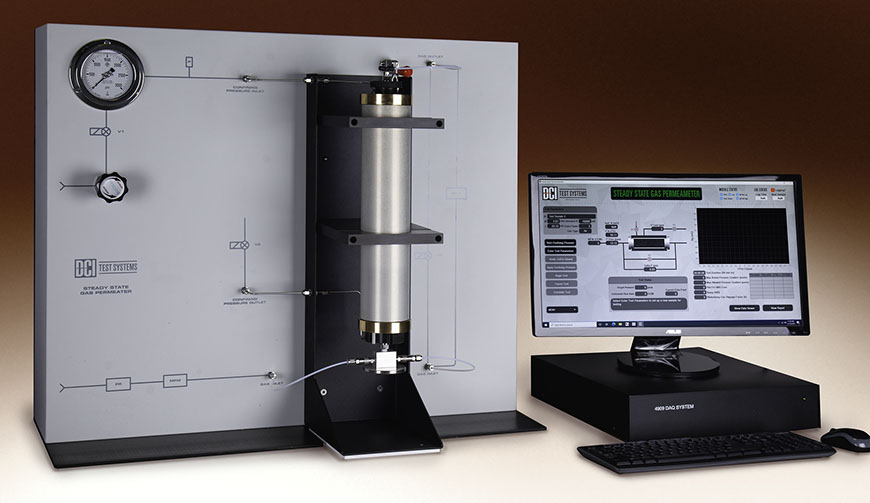

Steady State Gas Permeameter

Accurate Automated Gas
Permeability

Quick Setup and Sample Loading

Configure Wide Range of Permeabilities

Automated Software

• Switching between different sample diameters has never been easier. The free-standing tabletop core holders/stands allow for users to slide and lock core holder assemblies into place and connect tubes in only a few minutes.

• Each core holder has quarter turn locking lugs, allowing for easier sample loading and removal. Simply turn the end plug retainer a quarter turn to remove or load the end cap and sample.

• Each system is equipped with 2 flowmeters and 2 differential pressure transducers to increase accuracy. The software automatically selects the correct meter and transducer giving the best possible accuracy.

• The flow meters and differential pressure transducers are specified per the customers testing needs. This includes the permeability range and the different sample sizes the user may need to have the ability to measure.

• The software automates the test, and only require a few basic parameters about the sample. Once the software is started, the program will proceed through the different steps automatically. The data is saved in both spreadsheet and report formats for easy review.

• The user can have the software run single point or multiple point Klinkenberg correction permeability tests. The maximum pressure gradient and different pressure steps are all automatically calculated and run.

• The software allows for flow stabilization and checks for steady state before recording a point

Each System Can be Tailored to the Types of Samples You Test Most.

We believe that one system does not fit every need, and by configuring flow meters and differential pressure transducers to the permeability ranges and sample sizes you run most, we can provide the most accurate measurement possible.

Specifications

Features

Gallery

Specifications for Steady State Gas Permeameter
Pore Fluid Types Nitrogen, Helium, Air
Pore Pressure Up to 50 psia
Confining Fluid Type (Recommended) Nitrogen, Air
Confining Pressure Up to 2,000 psi**
Permeability Range .1 to 10,000 md
Temperature Ambient
Wetted Parts Stainless Steel

** Higher pressures available upon request

Quick setup and Quick Sample Loading

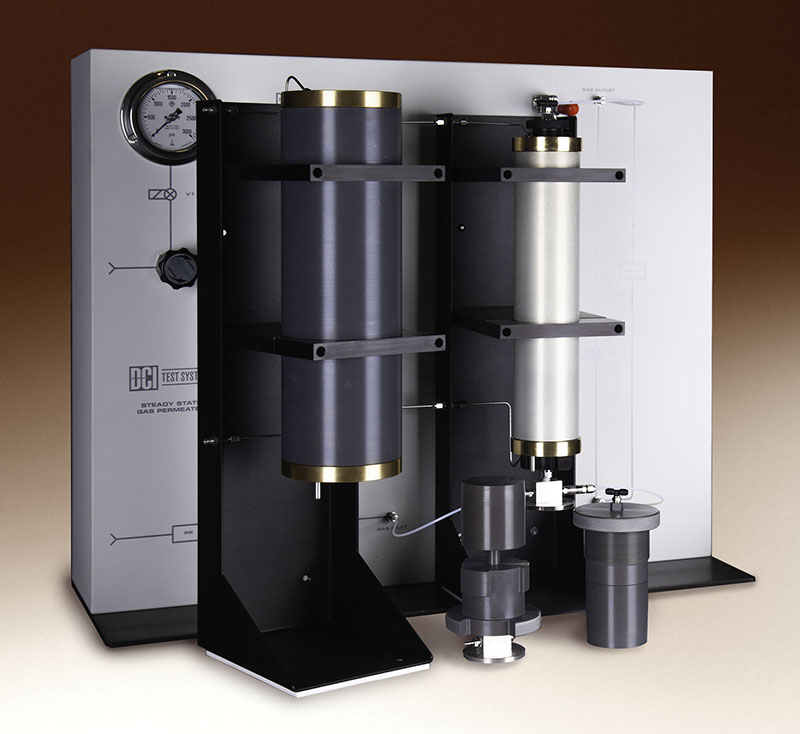

Switching between different sample diameters has never been easier. The free-standing tabletop core holders/stands allow for users to slide and lock core holder assemblies into place and connect tubes in only a few minutes. Each core holder has quarter turn locking lugs, allowing for easier sample loading and removal. Simply turn the end plug retainer a quarter turn to remove or load the end cap and sample. Multiple sample diameters and lengths available.

Configurable for a Wide Range of Permeabilities

Each system is equipped with 2 flowmeters and 2 differential pressure transducers to increase accuracy. The software automatically selects the correct meter and transducer giving the best possible accuracy. The flow meters and differential pressure transducers are specified per the customers testing needs. This includes the permeability range and the different sample sizes the user may need to have the ability to measure.

Automated Software

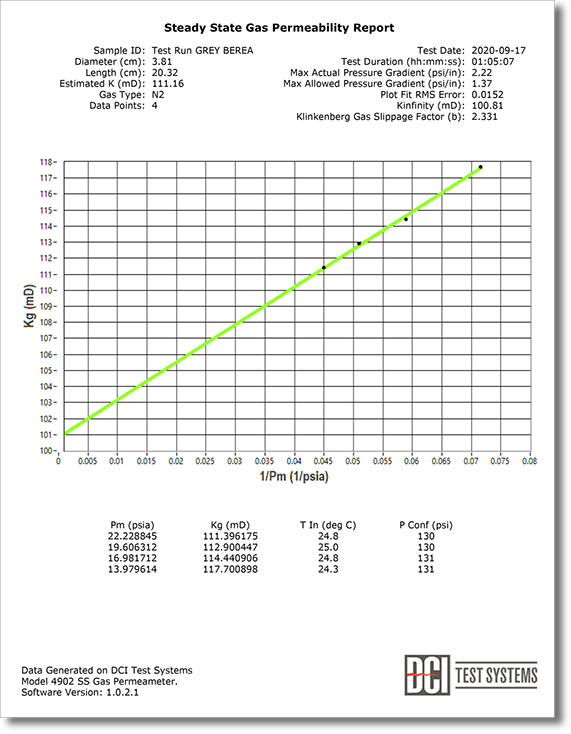

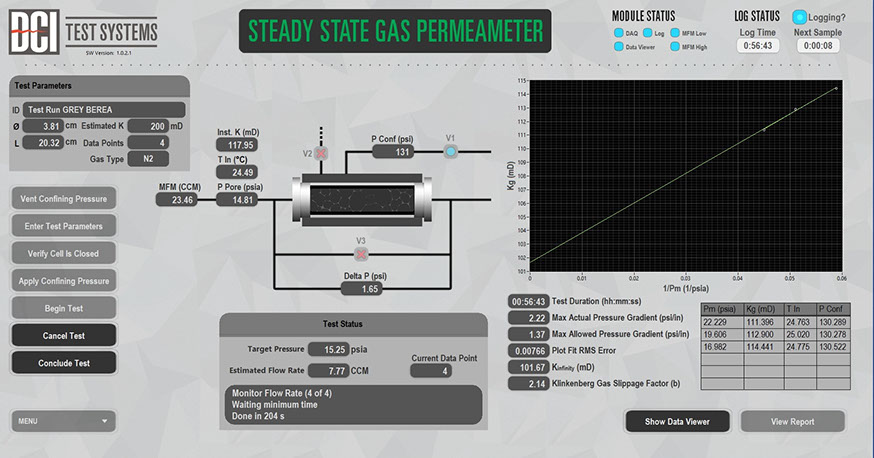

The software automates the test, and only require a few basic parameters about the sample. Once the software is started, the program will proceed through the different steps automatically. The data is saved in both spreadsheet and report formats for easy review. The user can have the software run single point or multiple point Klinkenberg correction permeability tests. The maximum pressure gradient and different pressure steps are all automatically calculated and run. The software allows for flow stabilization and checks for steady state before recording a point.

Each system can be tailored to the types of samples you test most.

We believe that one system does not fit every need, and by configuring flow meters and differential pressure transducers to the permeability ranges and sample sizes you run most, we can provide the most accurate measurement possible.
